LIGO

Gravitational waves are detected at LIGO by measuring shifts in interfering lasers

The instruments at each site send lasers down equally long arms, which should take the same amount of time to travel between suspended mirrors. Passing gravitational waves alter the shape of space—lengthening one arm and shrinking the other—altering how long it takes the lasers to complete their path, which scientists can measure.

According to general relativity, gravitational waves are ripples in spacetime

First detected a century after Albert Einstein predicted their existence, gravitational waves transmit information about cosmological events by altering the shape of spacetime. Like ripples in water, these waves travel outward and can be detected on Earth, even for objects that do not emit light, such as black holes.

The NSF funded the design and construction of LIGO by MIT and Caltech

The 1992 Cooperative Agreement between the National Science Foundation and both research institutions came twelve years after funding 1.5-meter (4.9-foot) and 40-meter (131-foot) prototypes. With a 1992 budget of $395M, LIGO was once one of the largest NSF-funded projects in history

The construction of LIGO needed to compensate for Earth's curvature

Across the 4-kilometer (2.5-mile) arms, the height of Earth's surface falls by almost a meter, preventing the lasers traveling within the arms from meeting the mirror at the end of each. Concrete slabs built beneath the arms help keep them level and provide structural support against seismic vibrations.

In LIGO's interferometers, light cancels itself out in the absence of gravitational waves

The devices are designed so that a laser is split into two beams that later recombine, canceling each other out and producing no signal. Changes in the lengths of the arms due to passing gravitational waves result in an interference pattern whose properties reveal features of the objects that created the waves.

LIGO can detect changes in spacetime one ten-thousandth the width of a proton

Gravity is the weakest of the fundamental forces in nature, meaning the length of objects only changes by minuscule amounts as gravitational waves ripple through space from distant, albeit massive, cosmic events. LIGO's sensitivity can measure an object shifting its position by one seven-hundred-trillionth of the width of a human hair.

LIGO made the first detection of gravitational waves

On February 11, 2016, scientists at the Laser Interferometer Gravitational-Wave Observatory announced the confirmed detection of ripples in spacetime, which were produced from the collision of two black holes 36 and 29 times the mass of the sun. The detection confirmed that gravitational waves travel at the speed of light, as predicted by Albert Einstein in 1915.

Listen to the pair of colliding black holes detected by LIGO

As ripples in spacetime, gravitational waves do not produce sound, which is the perception of specific vibrations in matter (e.g., vocal cords vibrating air molecules). The "chirp" of gravitational waves comes instead from converting the spacetime ripples into sound waves that the human ear can hear.

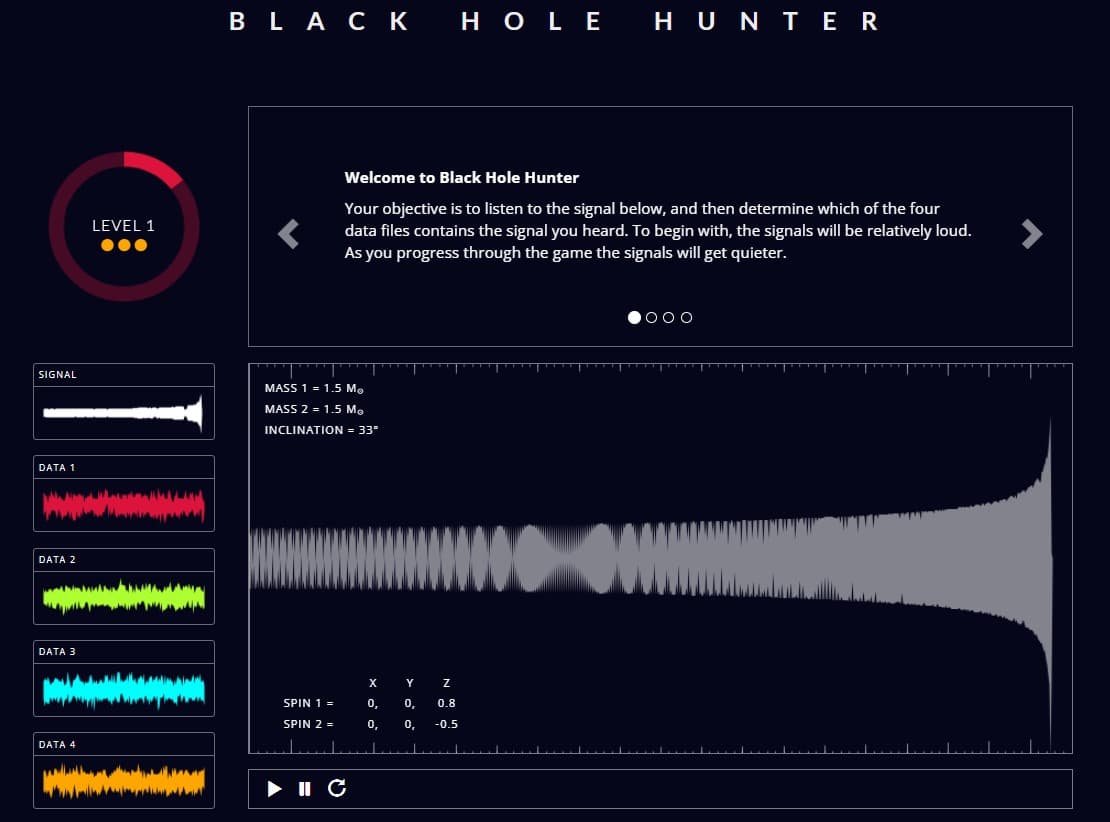

Try to catch the 'sound' of black holes in gravitational wave detector data

In "Black Hole Hunter," users try to listen for gravitational wave signals from black holes in four sample data files that include substantial background noise. With each level, learn more about black holes while being faced with ever-quieter signals.

Potential LIGO sites were selected in pairs, approximately 3,000 kilometers apart

The 1,864-mile distance meant gravitational wave signals would be detected no more than 10 milliseconds apart, ruling out many background signals. The sites needed sufficient plots of nearly flat land, proximity to infrastructure (e.g., electricity), and adequate distance from urban areas and geologically active areas to reduce environmental noise.
